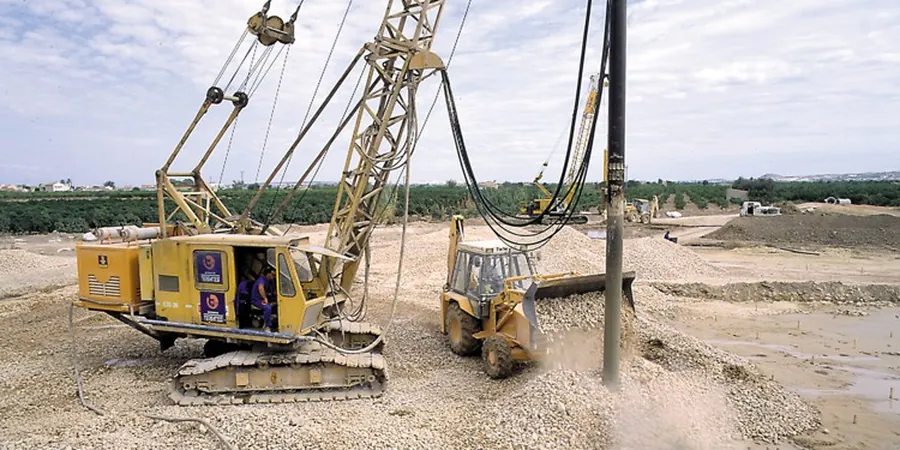

A recent warehouse development near the Hume Highway in Albury-Wodonga required ground improvement for soft alluvial clays up to 8 metres deep. Standard shallow foundations would have led to excessive total and differential settlements under the design loads. Stone column design offered a cost-effective alternative to deep piling, providing both reinforcement and accelerated drainage. Before finalising the column layout, the team performed a series of boreholes with SPT to profile the clay strength and identify any interbedded sand lenses that could affect column construction. The design followed a unit cell approach with columns spaced at 2.2 metres centre-to-centre, achieving a settlement reduction ratio of approximately 60% under service loads.
Stone column design reduces total settlement by 50–70% in soft alluvial clays when columns are spaced at 2.0–2.5 metres centre-to-centre.
Methodology and scope
Local considerations
West Albury's older residential areas sit on stiff residual clays, while the newer estates near Wodonga's industrial park are built on soft floodplain deposits. A stone column design that works well in one zone may underperform in the other if the soil variability is not captured. The main risk is lateral bulging of columns in very soft clays (su < 15 kPa), which reduces load transfer and can cause punching failure. Another concern is column continuity through loose sand layers, where the vibratory installation method may cause collapse of the column bore. A phased construction sequence with test columns and load monitoring helps validate the assumed design parameters before full-scale production.
Applicable standards
AS 4678-2002: Earth-retaining structures (reference for load combinations on improved ground), AS 1726-2017: Geotechnical site investigations (for soil classification and strength parameters), FHWA NHI-05-040: Design and Construction of Stone Columns (US guidance widely used in Australia), AS/NZS 1170.2:2021: Structural design actions (wind and earthquake loads affecting column design)
Associated technical services
Feasibility and Soil Characterisation
Review of existing borehole data, targeted field investigations including CPTu and vane shear, and laboratory classification to determine whether stone column design is suitable for the site conditions.
Detailed Design and Numerical Modelling
Unit cell analysis using Priebe's method or finite element software (e.g., Plaxis 2D) to establish column spacing, diameter, and length. Settlement and bearing capacity calculations are verified against AS 1726 requirements.
Construction Monitoring and Performance Verification
On-site supervision during column installation, including trial columns with load testing (plate load or zone load tests) to confirm modulus improvement factors assumed in the stone column design.
Typical parameters
Frequently asked questions
What typical settlement reductions can stone column design achieve in Albury-Wodonga's alluvial clays?
In soft clays with undrained shear strengths between 15 and 30 kPa, a well-designed stone column layout with 25–30% area replacement ratio typically reduces total settlement by 50 to 70% compared to untreated ground. The exact reduction depends on column spacing, diameter, and the compressibility of the native soil.
How does stone column design interact with the local groundwater table?
The water table in Albury-Wodonga's floodplain sits 1.5 to 3 metres below ground level. Stone column design must account for buoyancy effects on column weight and the potential for fines migration into the granular fill. A geotextile sleeve or graded filter layer is often specified at the column–soil interface when groundwater flow is significant.
What is the typical cost range for stone column design and installation in Albury-Wodonga?
For a medium-scale project (500–2,000 columns), the total cost including design, installation, and testing ranges between AU$2,510 and AU$8,190 per column depending on diameter, depth, and site access conditions. A detailed quotation requires the specific soil profile and loading criteria.
Can stone column design be combined with other ground improvement techniques?
Yes, it is common to pair stone columns with vertical drains in highly stratified deposits, or with surcharge preloading when the clay layer is thicker than 10 metres. The stone column design then serves dual purposes: reinforcement and drainage. The combination is evaluated through a unit cell consolidation analysis.
What quality control tests are performed during stone column construction?
During installation, we monitor the amperage draw and depth of the vibrator, and we take density measurements of the imported granular material. After installation, trial columns are tested with static load tests (plate diameter equal to column diameter) to verify the modulus improvement factor. Cone penetration tests (CPT) between columns confirm the degree of densification achieved.
